In commercial roofing, penetration failures account for over 80% of all roof leaks, resulting in billions of dollars in damage to buildings and equipment annually. Every pipe, vent, and mechanical unit that pierces the roof membrane creates a potential pathway for water infiltration.
Understanding and properly managing these critical vulnerability points determines the success or failure of entire roofing systems. From fundamental sealing concepts to advanced optimization strategies, this comprehensive guide equips facility managers with essential knowledge for protecting their roofing assets.
The following sections detail proven methods for achieving watertight integrity while maximizing energy efficiency and minimizing maintenance costs.
SECTION 1: FUNDAMENTAL CONCEPTS
Roof penetrations represent critical vulnerability points in commercial roofing systems, with statistics showing they account for over 80% of all roof leaks. Every pipe, vent, and mechanical unit that pierces the roof membrane creates potential pathways for water infiltration. Understanding and properly managing these penetrations is essential for protecting valuable assets and maintaining building operations. This section explores the fundamentals of roof penetrations, their common types, and the core principles for ensuring watertight seals.
Understanding Roof Penetrations
Roof penetrations are deliberate breaks in the roofing system necessary to accommodate building services and equipment. These openings create inherent weak points where the continuous waterproof barrier must be interrupted and properly resealed.
The complexity of penetration management lies in maintaining watertight integrity while allowing for thermal movement and structural shifts. Even minor defects in sealing can lead to significant water damage over time.
Weather exposure and temperature fluctuations constantly stress penetration seals. UV radiation, freeze-thaw cycles, and precipitation all work to degrade sealing materials and compromise their effectiveness.
Regular inspection and maintenance of penetrations are essential components of roof asset management. Small issues can quickly escalate into major problems if left unaddressed.
Common Types of Penetrations

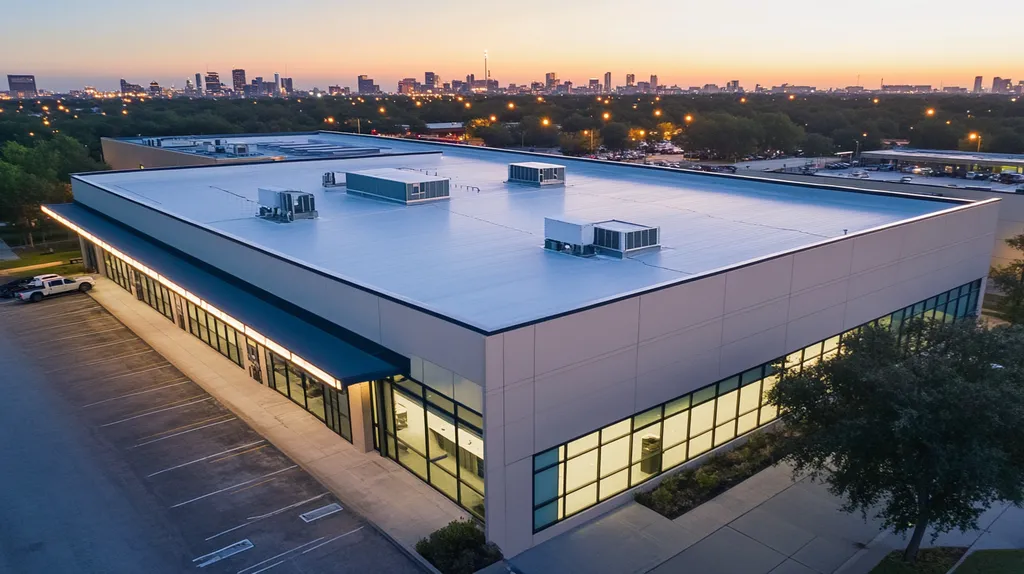

HVAC units represent one of the largest and most complex penetration types. These installations require substantial roof openings and often involve multiple smaller penetrations for electrical and condensate lines.
Plumbing vents and exhaust stacks present unique challenges due to their frequent exposure to temperature extremes. These penetrations must accommodate both vertical and lateral movement while maintaining watertight seals.
Electrical conduits and safety tie-off anchors, while smaller, require precise sealing techniques. Their relatively small size makes proper flashing crucial to prevent water infiltration.
Structural supports and equipment mounting points demand special attention. These penetrations often bear significant loads and must maintain seal integrity under constant stress.
Basic Sealing Principles
Proper spacing and clearance form the foundation of effective penetration sealing. Penetrations must be spaced at least 1 inch apart, with 1 inch of clearance from sealant pocket pan walls to ensure proper installation and maintenance. (source: IIBEC)
Material compatibility is crucial for long-term performance. Sealants and flashing materials must be chemically compatible with both the roof membrane and the penetrating element.
Proper surface preparation determines sealing success. All surfaces must be clean, dry, and properly primed before applying any sealing materials.
Environmental conditions during installation significantly impact seal quality. Temperature, humidity, and weather conditions must fall within manufacturer specifications for optimal results.
Regular monitoring and maintenance ensure seal longevity. Establishing inspection schedules and documentation procedures helps track performance and anticipate necessary repairs.
SECTION 2: SYSTEM COMPONENTS
The integrity of commercial roofing systems hinges on properly integrated components working in harmony. Studies show that 90% of premature roof failures stem from component incompatibility or improper installation. Each penetration requires careful consideration of membrane materials, sealing methods, and hardware selection to maintain watertight integrity throughout the roof’s lifespan.
Roofing Membrane Materials
Modern commercial roofing employs three primary membrane types: EPDM (Ethylene Propylene Diene Monomer), TPO (Thermoplastic Polyolefin), and PVC (Polyvinyl Chloride). Each material offers distinct advantages for specific applications and climate conditions.
EPDM excels in durability and UV resistance, making it ideal for exposed applications. Its flexibility allows for excellent performance around penetrations and in regions with extreme temperature fluctuations.
TPO membranes provide superior energy efficiency through their reflective surface while maintaining strong resistance to chemical exposure. These membranes work particularly well in hot climates where cooling costs are a concern.
PVC systems offer exceptional chemical resistance and weldability, creating robust seams around penetrations. Their longevity in harsh industrial environments makes them popular for manufacturing facilities.
Sealant and Flashing Options
Proper penetration sealing requires careful consideration of both sealant type and flashing configuration. All penetrations must maintain specific spacing requirements, with a minimum of 1 inch between penetrations and from sealant pocket walls to ensure proper encapsulation and adhesion. (source: IIBEC)
High-performance sealants include butyl-based products for maximum adhesion and silicone sealants for superior weather resistance. The choice depends on specific environmental conditions and penetration types.
Pre-fabricated flashings offer consistency and reliability for standard penetrations. Custom-fabricated flashings address unique configurations where pre-made solutions aren’t suitable.
Metal flashings provide durability for high-stress areas, while flexible flashings accommodate building movement and thermal expansion. Both require proper integration with the primary membrane system.
Penetration Hardware Components
Penetration hardware serves as the critical interface between roofing systems and essential building services. Proper selection and installation of these components directly impact system longevity.
Pitch pockets and penetration pans create watertight seals around multiple penetrations. These components require regular maintenance to ensure continued performance and prevent deterioration.
Pipe boots and hood-style covers protect single penetrations while allowing necessary movement. Materials must be compatible with both the penetrating element and the roof membrane.
Equipment curbs distribute loads and elevate mechanical units above the roof surface. Proper sizing and installation prevent stress concentration that could compromise membrane integrity.
Structural supports require specialized hardware to maintain stability without compromising waterproofing. These components must account for both static and dynamic loads while preserving seal integrity.
SECTION 3: IMPLEMENTATION METHODS
Proper implementation of penetration sealing methods directly impacts building protection and operational costs. Industry data shows that 70% of all roof failures start at poorly sealed penetrations, leading to billions in preventable damage annually. This section examines the critical stages of penetration sealing: surface preparation, material-specific techniques, and verification of watertight integrity.
Preparing the Roof Surface
Surface preparation forms the foundation for penetration sealing success. A thorough cleaning protocol must remove all contaminants, including oils, debris, and existing deteriorated sealants that could compromise adhesion.
Environmental conditions play a crucial role in surface preparation. Temperature and humidity levels must fall within manufacturer-specified ranges, while surfaces must remain completely dry throughout the preparation process.
Proper inspection of the penetration area reveals potential underlying issues. This includes examining for structural damage, checking membrane condition, and verifying that spacing requirements are met.
Creating a proper profile on the substrate enhances sealant adhesion. This may involve mechanical abrasion, chemical cleaning, or specialized primers depending on the roofing material.
Sealing Techniques for Different Materials
Different penetration types require specific sealing approaches. Pitch pockets provide strong sealing for multiple penetrations, while pipe boots offer reliable protection for single pipe penetrations, and banding systems provide versatile reinforcement for various configurations. (source: O’Connor Roofing)
TPO and PVC membranes typically require heat-welded flashings. This creates a molecular bond between the membrane and flashing material, ensuring maximum durability.
EPDM systems benefit from specialized adhesive-based solutions. The flexible nature of EPDM requires sealing methods that maintain elasticity while providing watertight protection.
Metal roofing systems demand particular attention to thermal movement. Sealants must accommodate expansion and contraction while maintaining adhesion to both the penetration and roof surface.
Ensuring Watertightness
Verification of seal integrity requires systematic testing procedures. Initial visual inspections check for consistent application, proper coverage, and absence of voids or gaps.
Physical testing confirms seal effectiveness. This includes probe testing of seams, adhesion testing of flashings, and water testing of completed assemblies.
Documentation of testing results provides crucial baseline data. This information supports future maintenance planning and warranty compliance requirements.
Regular inspection schedules help identify potential issues early. Quarterly visual inspections and annual detailed assessments protect the investment in properly sealed penetrations.
Integration with broader maintenance protocols ensures long-term performance. This includes cleaning schedules, preventive maintenance, and periodic resealing as needed.
SECTION 4: MAINTENANCE REQUIREMENTS
Effective maintenance of commercial roof penetrations directly impacts building protection and operational costs. Studies show that 85% of premature roof failures originate at improperly maintained penetrations, leading to billions in preventable damage. Understanding and implementing proper maintenance protocols is crucial for protecting valuable assets and maintaining building operations.
Regular Inspection Protocols
Systematic inspection schedules form the foundation of effective penetration maintenance. Quarterly visual assessments and comprehensive annual evaluations help identify potential issues before they escalate into major problems.
Documentation during inspections must include detailed observations of sealant conditions, flashing integrity, and signs of water infiltration. This creates a valuable record for tracking degradation patterns and planning preventive maintenance.
Thermal imaging and moisture detection equipment enhance inspection accuracy. These tools can reveal hidden moisture issues that might go unnoticed during visual inspections alone.
Weather events necessitate additional inspections to assess potential damage. High winds, hail, or extreme temperature fluctuations can compromise penetration seals and require immediate attention.
Sealant Replacement Strategies
A successful watertight seal requires proper spacing, complete waterproofing, and solid construction around each penetration. The roofing membrane must extend sufficiently up each penetration, while liquid flashing can effectively seal open seams. (source: Building Enclosure)
Regular evaluation of sealant elasticity and adhesion helps determine replacement timing. Most commercial roof sealants require replacement every 5-7 years, though harsh environments may necessitate more frequent attention.
Surface preparation remains critical during sealant replacement. All old material must be completely removed, and surfaces properly cleaned and primed before new sealant application.
Weather conditions significantly impact replacement success. Temperature, humidity, and precipitation must fall within manufacturer specifications during installation.
Preventing Leaks and Damage
Preventive maintenance focuses on addressing potential issues before water infiltration occurs. This includes maintaining proper drainage around penetrations and ensuring flashings remain securely attached.
Regular cleaning prevents debris accumulation that can trap moisture against seals. Removing organic matter and maintaining clear drainage paths extends penetration seal life.
Monitoring building movement and structural settling helps anticipate potential stress on penetration seals. Adjusting maintenance schedules based on observed patterns prevents premature seal failure.
Integration with broader roof maintenance programs ensures comprehensive protection. This includes coordinating penetration maintenance with membrane cleaning, drainage system maintenance, and general roof repairs.
SECTION 5: PERFORMANCE METRICS
Performance metrics for commercial roof penetrations directly impact building integrity and operational costs. Industry data shows that improper penetration sealing accounts for up to 90% of premature roof failures, resulting in billions in avoidable damage annually. Understanding and tracking key performance indicators allows property owners to protect their assets while optimizing maintenance investments. Effective measurement of seal integrity, water resistance, and cost implications provides the foundation for data-driven decision-making.
Evaluating Seal Integrity
Regular assessment of penetration seal integrity requires both visual inspection and specialized testing. Key indicators include material deterioration, separation at seams, and changes in sealant flexibility.
Non-destructive testing methods provide quantitative data on seal performance. These include infrared scanning to detect hidden moisture and adhesion testing to verify bonding strength.
Documentation systems must track seal conditions over time. This creates performance baselines and helps identify degradation patterns before failure occurs.
Environmental factors significantly impact seal longevity. Temperature extremes, UV exposure, and chemical exposure all affect material performance and must be considered in evaluation protocols.
Assessing Water Resistance
A successful watertight seal requires proper spacing, complete waterproofing, and solid construction around each penetration. The roofing membrane must extend sufficiently up each penetration, while liquid flashing effectively seals open seams. (source: Building Enclosure)
Water testing protocols verify seal effectiveness under real-world conditions. Controlled flooding tests and spray testing reveal potential vulnerabilities before actual leaks develop.
Moisture monitoring systems provide continuous data on seal performance. Electronic sensors detect water infiltration early, allowing rapid response to emerging issues.
Weather event tracking correlates environmental conditions with seal performance. This data helps optimize maintenance schedules and material selection for specific climate zones.
Cost-Benefit Analysis
Financial metrics must consider both immediate costs and long-term implications. Initial investment in quality materials and proper installation typically represents 15-20% of total lifecycle costs.
Maintenance costs vary significantly based on penetration type and environmental exposure. Regular assessment helps optimize resource allocation and prevent unnecessary expenses.
Energy efficiency impacts overall cost analysis. Properly sealed penetrations reduce heating and cooling losses, generating measurable savings in utility costs.
Warranty compliance requires documented performance metrics. Maintaining detailed records of inspections and repairs protects warranty coverage and validates maintenance investments.
Risk assessment calculations must factor in potential damage costs. Water infiltration through failed seals can cause exponential damage to building systems and contents.
SECTION 6: OPTIMIZATION STRATEGIES
Optimizing commercial roof penetrations represents a critical opportunity to enhance building performance and protect assets. Industry data shows that penetration-related issues account for over 60% of premature roof failures, leading to billions in avoidable repairs and operational disruptions annually. Strategic improvements in penetration design, sealing methods, and maintenance protocols can dramatically extend roof life while reducing energy costs and maintenance expenses.
Enhancing System Durability
A successful watertight seal requires proper spacing between penetrations, complete waterproofing integration, and solid construction techniques around each opening. These fundamental guidelines ensure long-term performance and system integrity. (source: Building Enclosure)
Strategic placement of penetrations away from high-traffic areas and drainage paths reduces physical stress on seals. This positioning consideration significantly extends seal longevity and reduces maintenance requirements.
Enhanced flashing designs incorporating secondary drainage planes provide additional protection against water infiltration. These redundant systems ensure continued performance even if primary seals begin to degrade.
Implementation of movement-accommodating details around penetrations prevents seal failure from building movement and thermal expansion. Flexible boots and properly sized pitch pans allow necessary movement while maintaining watertight integrity.
Improving Energy Efficiency
Thermal bridging through poorly insulated penetrations can significantly impact building energy performance. Proper insulation and air sealing around penetrations can reduce HVAC loads by up to 15% in many commercial buildings.
Integration of thermal breaks around metal penetrations prevents heat transfer through conductive materials. This detail is particularly crucial in cold climates where condensation control is essential.
Strategic clustering of penetrations allows for more efficient insulation and reduces the total area of thermal discontinuity. This approach simplifies long-term maintenance while improving overall thermal performance.
Regular thermal imaging surveys help identify energy loss through degraded penetration seals. Early detection enables targeted repairs before significant energy waste occurs.
Reducing Maintenance Costs
Standardization of penetration details across roof areas streamlines maintenance procedures and reduces labor costs. Consistent approaches to sealing and flashing allow maintenance teams to work more efficiently.
Implementation of preventive maintenance protocols focused on penetration inspection and seal renewal prevents costly emergency repairs. Regular assessment of seal conditions enables planned interventions before failure occurs.
Documentation systems tracking penetration performance help optimize maintenance scheduling and resource allocation. This data-driven approach ensures maintenance efforts target the most critical needs first.
Investment in high-performance sealing materials and installation methods reduces the frequency of required maintenance interventions. Quality materials properly installed often provide superior value despite higher initial costs.
The Bottom Line
With roof penetration failures driving over 80% of commercial roof leaks and billions in annual damage, proper sealing represents the single most critical factor in roofing system performance.
The integration of proven sealing methods, quality materials, and systematic maintenance protocols directly impacts building protection and operational costs.
Facility managers who implement comprehensive penetration management strategies – from proper spacing and material selection to regular inspection and preventive maintenance – can extend roof life by 25-40% while reducing energy costs up to 15%.
As building systems become more complex and energy efficiency demands increase, the importance of properly sealed roof penetrations will only grow in the decades ahead.
The future of commercial roofing depends on getting these critical junctions right.
FREQUENTLY ASKED QUESTIONS
Q. What are common vulnerabilities in a commercial roof?
A. Roof penetrations are critical vulnerability points in commercial roofing systems. They account for over 80% of all roof leaks. Properly managing these areas is essential to prevent significant water damage over time.
Q. How do roofing membrane materials affect industrial roofs?
A. Different roofing membrane materials, like EPDM and TPO, offer varying advantages. The right choice enhances durability, energy efficiency, and resistance to environmental stressors, thereby improving the performance of industrial roofs.
Q. How can I ensure proper sealing on my commercial roof?
A. Surface preparation is crucial for proper sealing. Clean and dry surfaces, coupled with the right sealants and environmental conditions, can significantly enhance watertight integrity during installation.
Q. What maintenance routines are recommended for industrial roofs?
A. Regular inspections should include visual assessments and documentation of seal conditions. Quarterly checks and annual thorough evaluations help catch potential issues early, ensuring the longevity of the roof.
Q. What performance metrics should be tracked for commercial roofs?
A. It’s essential to track seal integrity and water resistance through regular inspections and testing. Documenting performance metrics aids in making informed decisions regarding maintenance and potential repairs.
Q. How can I optimize roof penetrations in a commercial setting?
A. Enhancing the design and sealing methods can prevent future issues. Consider strategic placement and improved flashing designs to extend the roof’s lifespan and reduce maintenance costs.
Q. What should I know about emergency repairs for my commercial roof?
A. Emergency repairs should focus on immediate sealing of leaks and assessment of damage. Quick actions can prevent further water infiltration, reducing the extent of repairs and associated costs down the line.
